Disc springs DIN 2093
Elastic disc springs DIN 2093 are pieces with a great accuracy. They are designed to work in a dynamic way supporting a high number of cycles.
These conical springs provide an elastic axial strength proportional to deformation they suffer. Depending on your needs, it's possible to stack these springs in serial or in parallel to achieve the spring required. To know more about these springs consult: Disc Springs DIN 2093
-

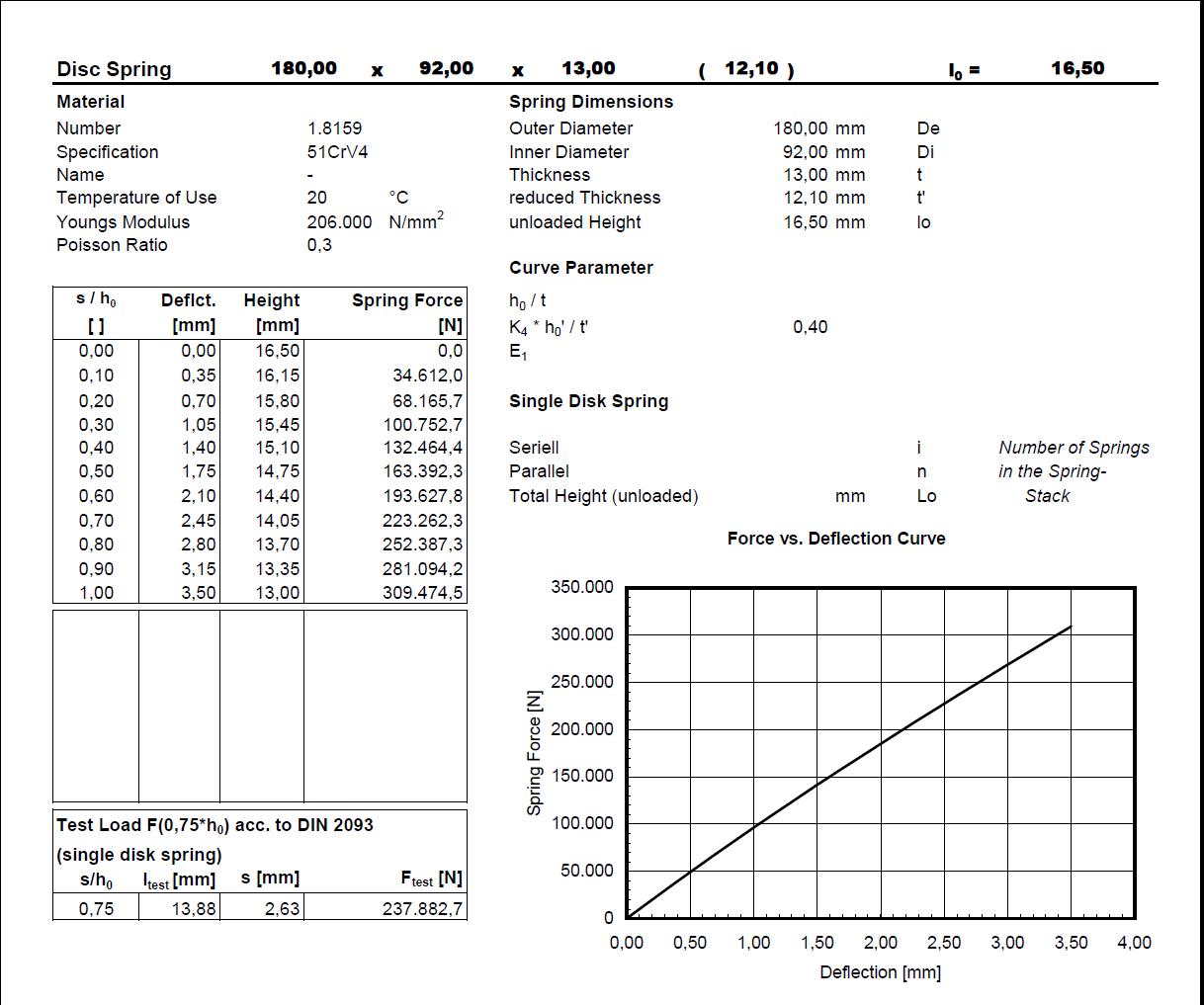

57,58 €Disc spring 180,0x92,0x13,00x16,50x12,1
Disc spring DIN 2093 Material 51CrV4
In Stock (40)57,58 €From 25 units 51,82 € From 50 units 47,22 € From 100 units 43,19 € -
430,61 €Disc spring 180,0x92,0x13,00x16,50x12,1...
Disc spring DIN 2093 stainless steel 17-7PH
430,61 €From 25 units 366,02 € From 50 units 333,72 € From 100 units 301,43 € -
51,08 €Disc spring 200,0x82,0x8,00x14,20x7,6
Disc spring DIN 2093 Material 51CrV4
51,08 €From 20 units 45,97 € From 50 units 41,89 € From 100 units 38,31 € -
371,13 €Disc spring 200,0x82,0x8,00x14,20x7,5...
Disc spring DIN 2093 stainless steel 17-7PH
371,13 €From 20 units 352,57 € From 50 units 343,30 € From 100 units 334,02 € -

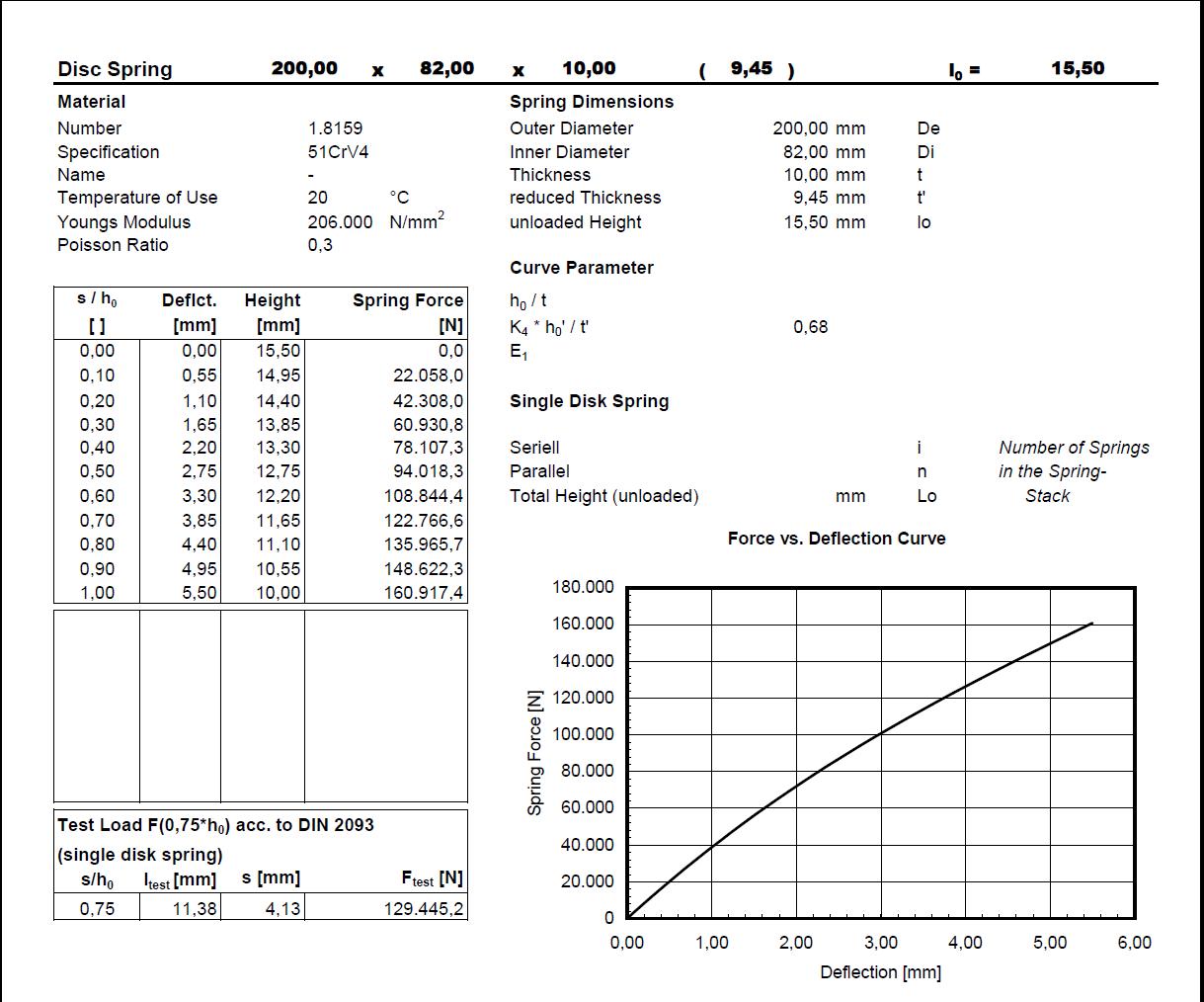

57,58 €Disc spring 200,0x82,0x10,00x15,50x9,45
Disc spring DIN 2093 Material 51CrV4
In Stock (14)57,58 €From 20 units 51,82 € From 50 units 47,22 € From 100 units 43,19 € -
384,47 €Disc spring 200,0x82,0x10,00x15,50x9,40...
Disc spring DIN 2093 stainless steel 17-7PH
384,47 €From 20 units 365,25 € From 50 units 355,63 € From 100 units 346,02 € -

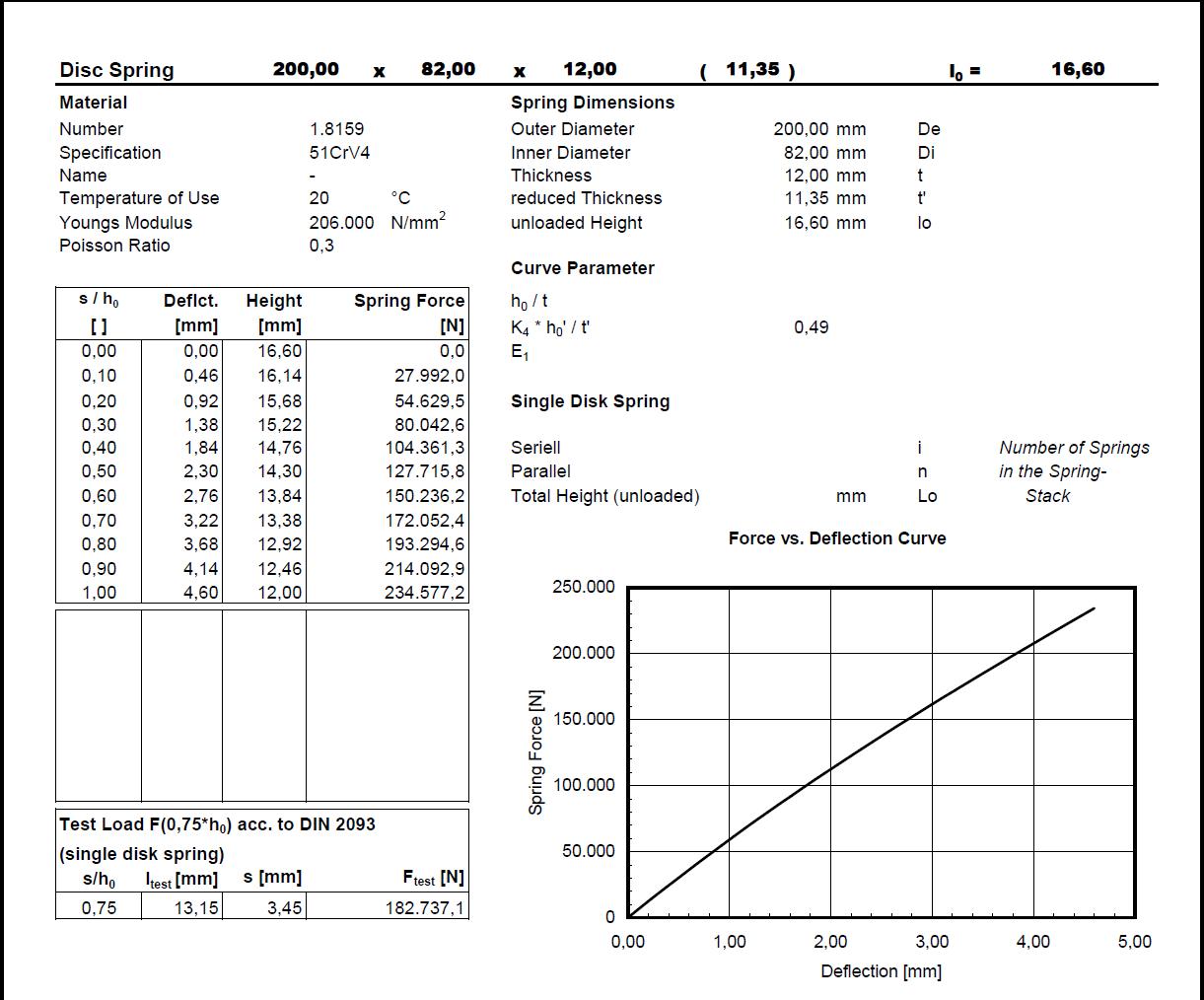

65,02 €Disc spring 200,0x82,0x12,00x16,60x11,35
Disc spring DIN 2093 Material 51CrV4
65,02 €From 20 units 58,52 € From 50 units 53,32 € From 100 units 48,77 € -
394,72 €Disc spring 200,0x82,0x12,00x16,60x11,30...
Disc spring DIN 2093 stainless steel 17-7PH
394,72 €From 20 units 374,98 € From 50 units 365,12 € From 100 units 355,25 € -

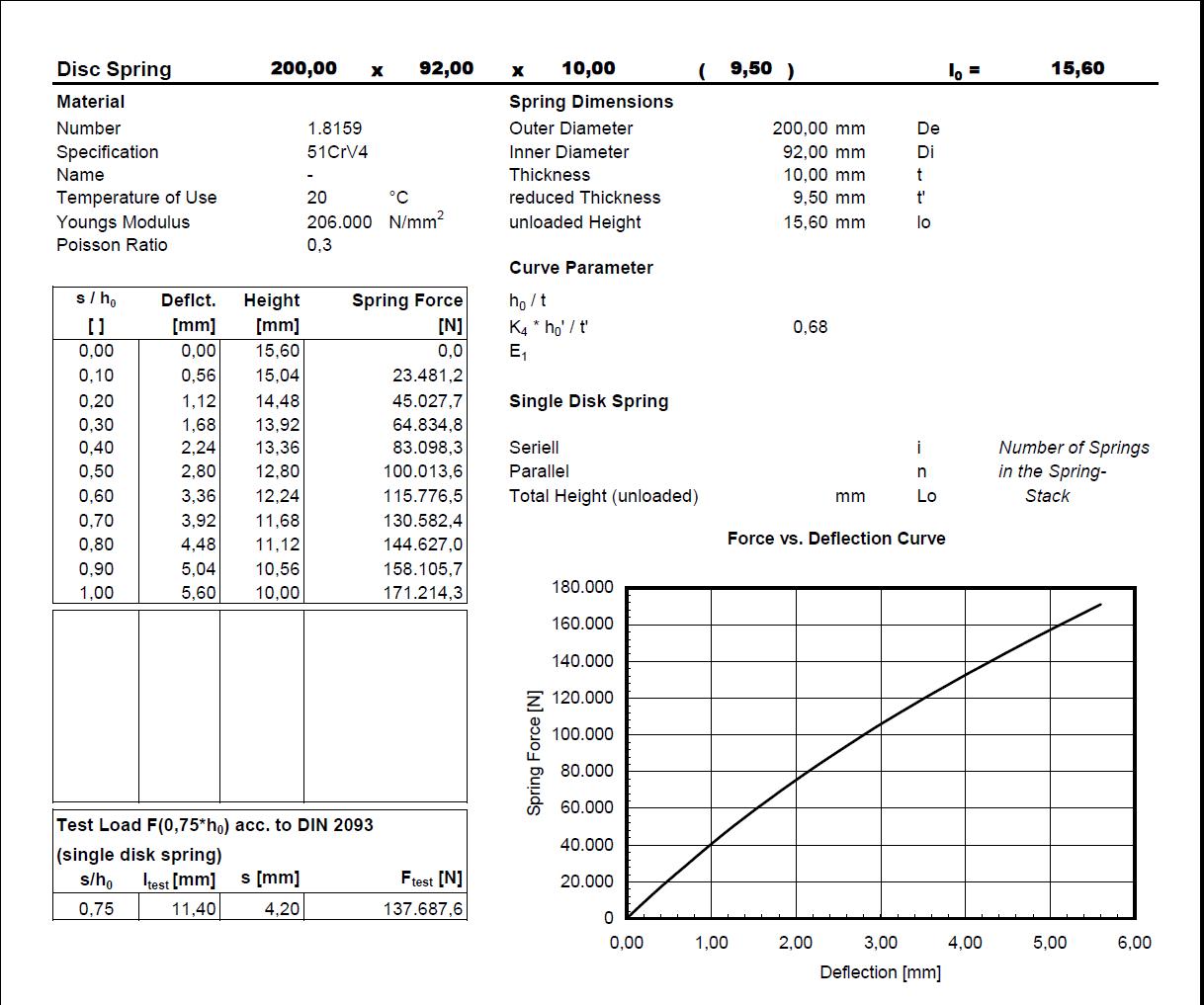

57,58 €Disc spring 200,0x92,0x10,00x15,60x9,5
Disc spring DIN 2093 Material 51CrV4
In Stock (14)57,58 €From 20 units 51,82 € From 50 units 47,22 € From 100 units 43,19 € -
387,54 €Disc spring 200,0x92,0x10,00x15,60x9,40...
Disc spring DIN 2093 stainless steel 17-7PH
387,54 €From 20 units 368,16 € From 50 units 358,47 € From 100 units 348,79 €
