Disc springs DIN 2093
Elastic disc springs DIN 2093 are pieces with a great accuracy. They are designed to work in a dynamic way supporting a high number of cycles.
These conical springs provide an elastic axial strength proportional to deformation they suffer. Depending on your needs, it's possible to stack these springs in serial or in parallel to achieve the spring required. To know more about these springs consult: Disc Springs DIN 2093
-

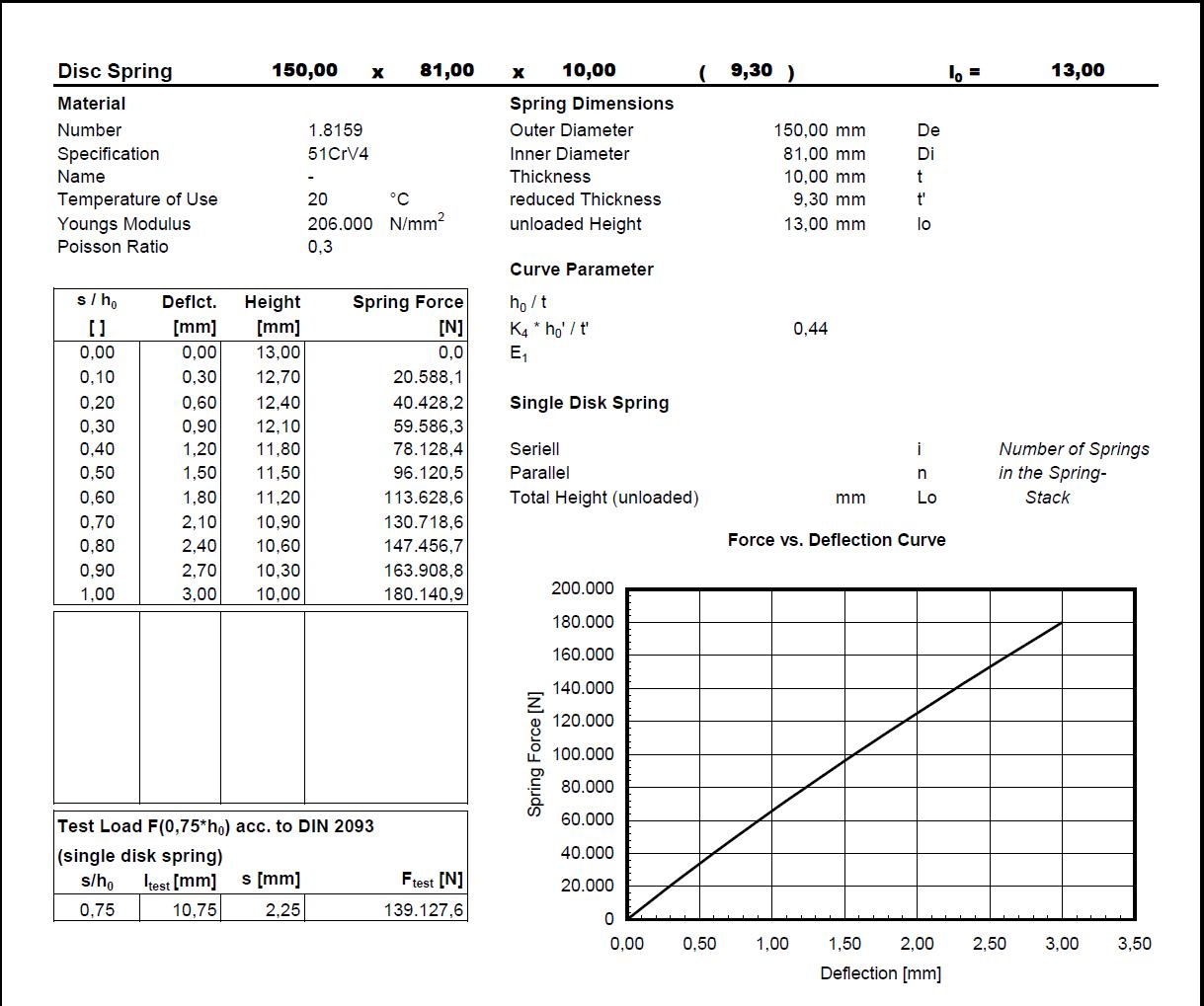

35,32 €Disc spring 150,0x81,0x10,00x13,00x9,3
Disc spring DIN 2093 Material 51CrV4
In Stock (39)35,32 €From 25 units 31,79 € From 50 units 28,96 € From 100 units 26,49 € -
224,27 €Disc spring 160,0x82,0x4,30x9,90 stainless...
Disc spring C160 DIN 2093 stainless steel 17-7PH
224,27 €From 25 units 190,63 € From 50 units 173,81 € From 100 units 156,99 € -

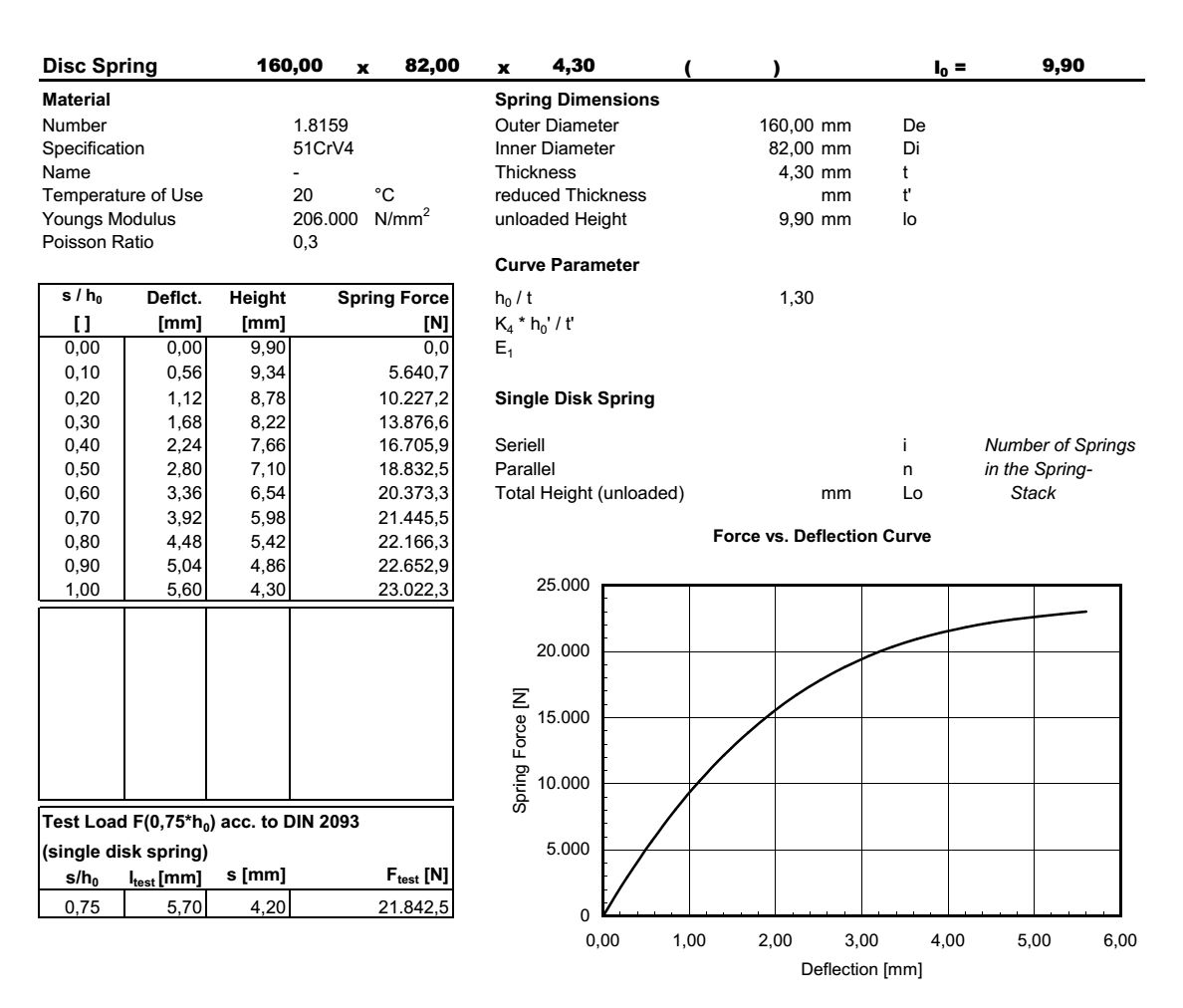

20,90 €Disc spring 160,0x82,0x4,30x9,90
Disc spring C160 DIN 2093 Material 51CrV4
In Stock (162)20,90 €From 25 units 18,81 € From 50 units 17,14 € From 100 units 15,68 € -

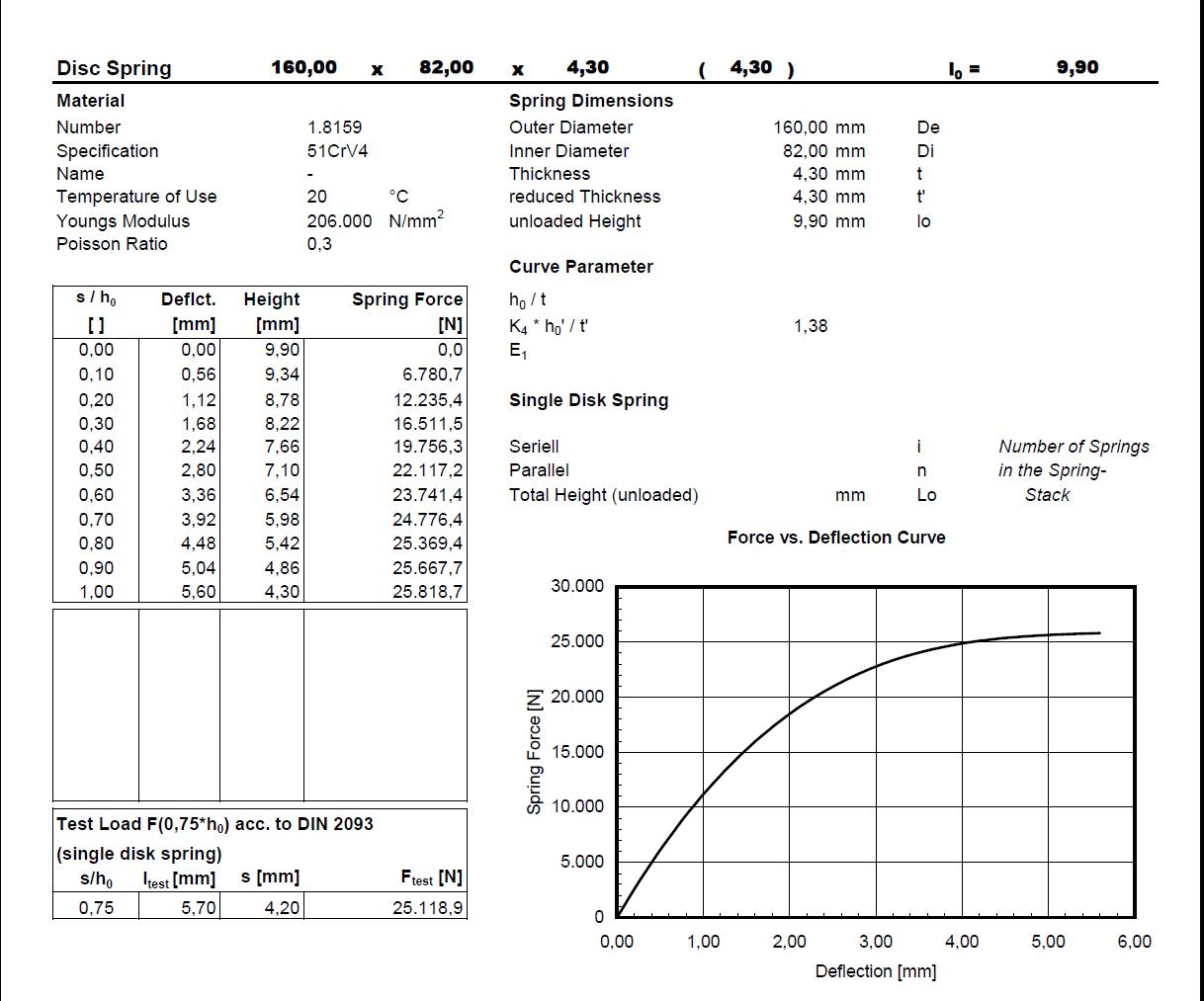

20,90 €Disc spring 160,0x82,0x4,30x9,90x4,3
Disc spring DIN 2093 Material 51CrV4
20,90 €From 25 units 18,81 € From 50 units 17,14 € From 100 units 15,68 € -

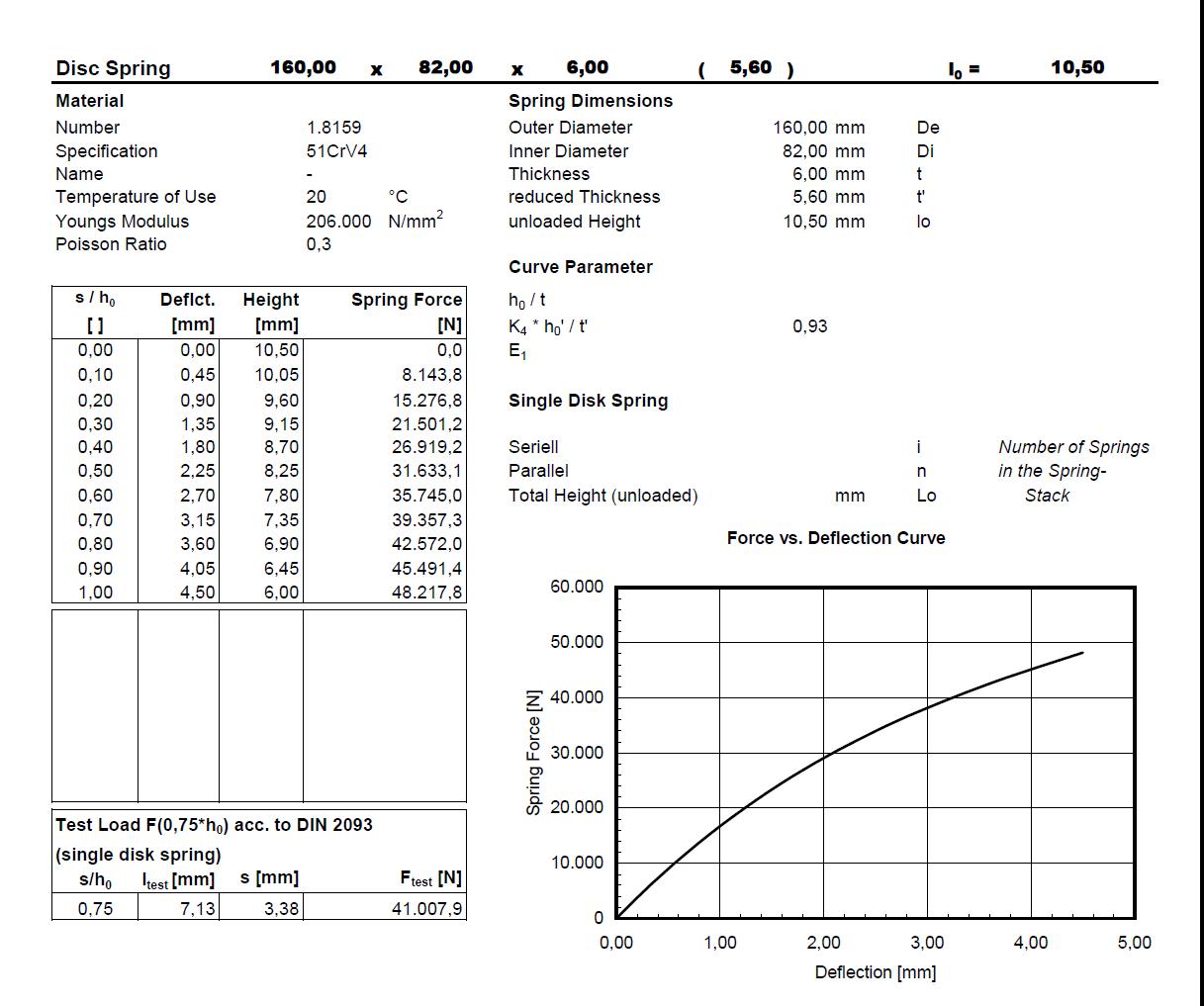

25,06 €Disc spring 160,0x82,0x6,00x10,50x5,6
Disc spring DIN 2093 Material 51CrV4
25,06 €From 25 units 22,55 € From 50 units 20,55 € From 100 units 18,80 € -
257,34 €Disc spring 160,0x82,0x6,00x10,50...
Disc spring B160 DIN 2093 stainless steel 17-7PH
257,34 €From 25 units 218,74 € From 50 units 199,44 € From 100 units 180,14 € -
257,34 €Disc spring 160,0x82,0x6,00x10,50x5,6...
Disc spring DIN 2093 stainless steel 17-7PH
257,34 €From 25 units 218,74 € From 50 units 199,44 € From 100 units 180,14 € -
25,06 €Disc spring 160,0x82,0x6,00x10,50
Disc spring B160 DIN 2093 Material 51CrV4
25,06 €From 25 units 22,55 € From 50 units 20,55 € From 100 units 18,80 € -

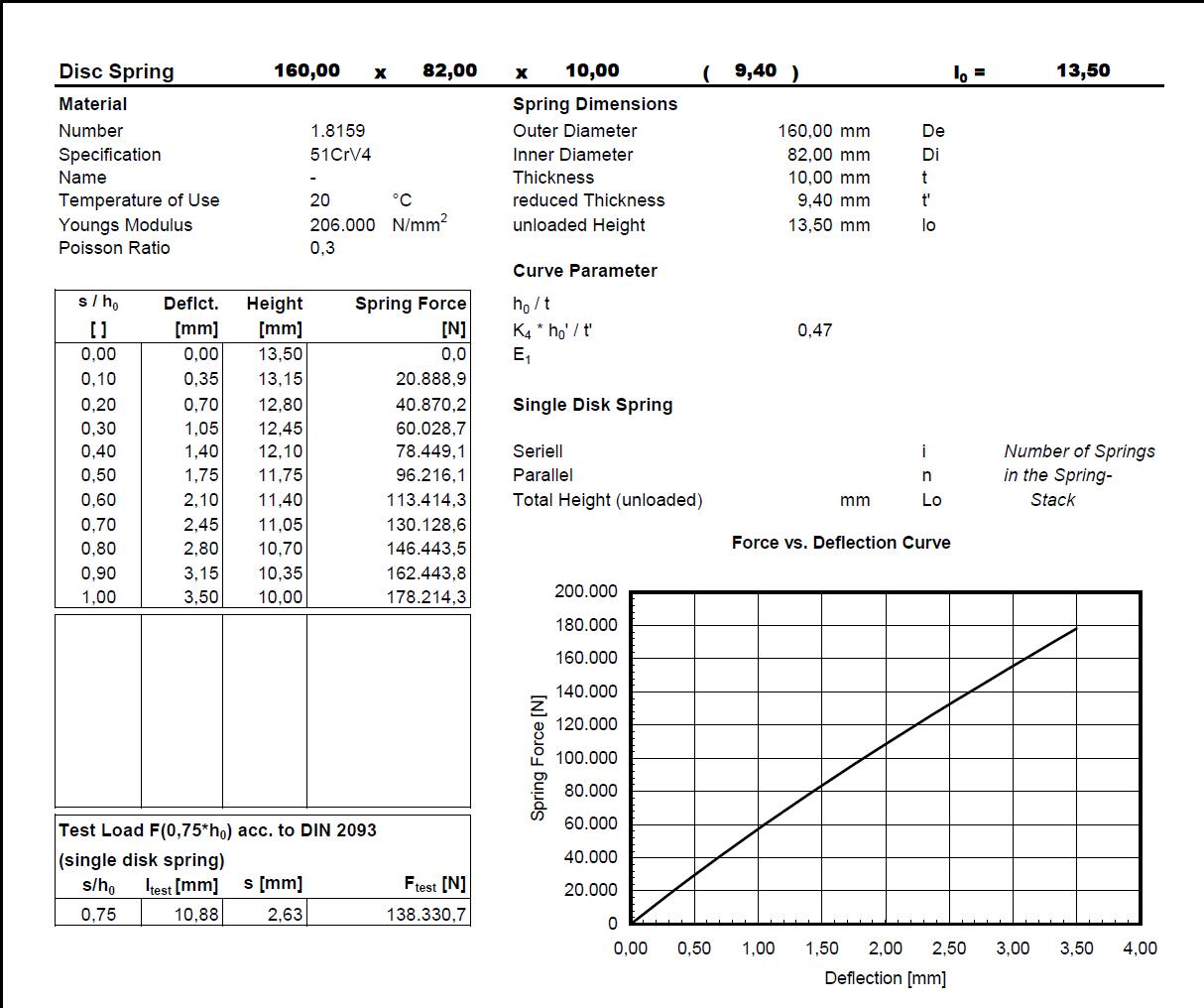

37,15 €Disc spring 160,0x82,0x10,00x13,50x9,4
Disc spring A160 DIN 2093 Material 51CrV4
In Stock (1143)37,15 €From 25 units 33,44 € From 50 units 30,46 € From 100 units 27,86 € -
312,70 €Disc spring 160,0x82,0x10,00x13,50x9,4...
Disc spring A160 DIN 2093 en acero inoxidable 17-7PH
312,70 €From 25 units 265,80 € From 50 units 242,34 € From 100 units 218,89 €
