Disc springs DIN 2093
Elastic disc springs DIN 2093 are pieces with a great accuracy. They are designed to work in a dynamic way supporting a high number of cycles.
These conical springs provide an elastic axial strength proportional to deformation they suffer. Depending on your needs, it's possible to stack these springs in serial or in parallel to achieve the spring required. To know more about these springs consult: Disc Springs DIN 2093
-

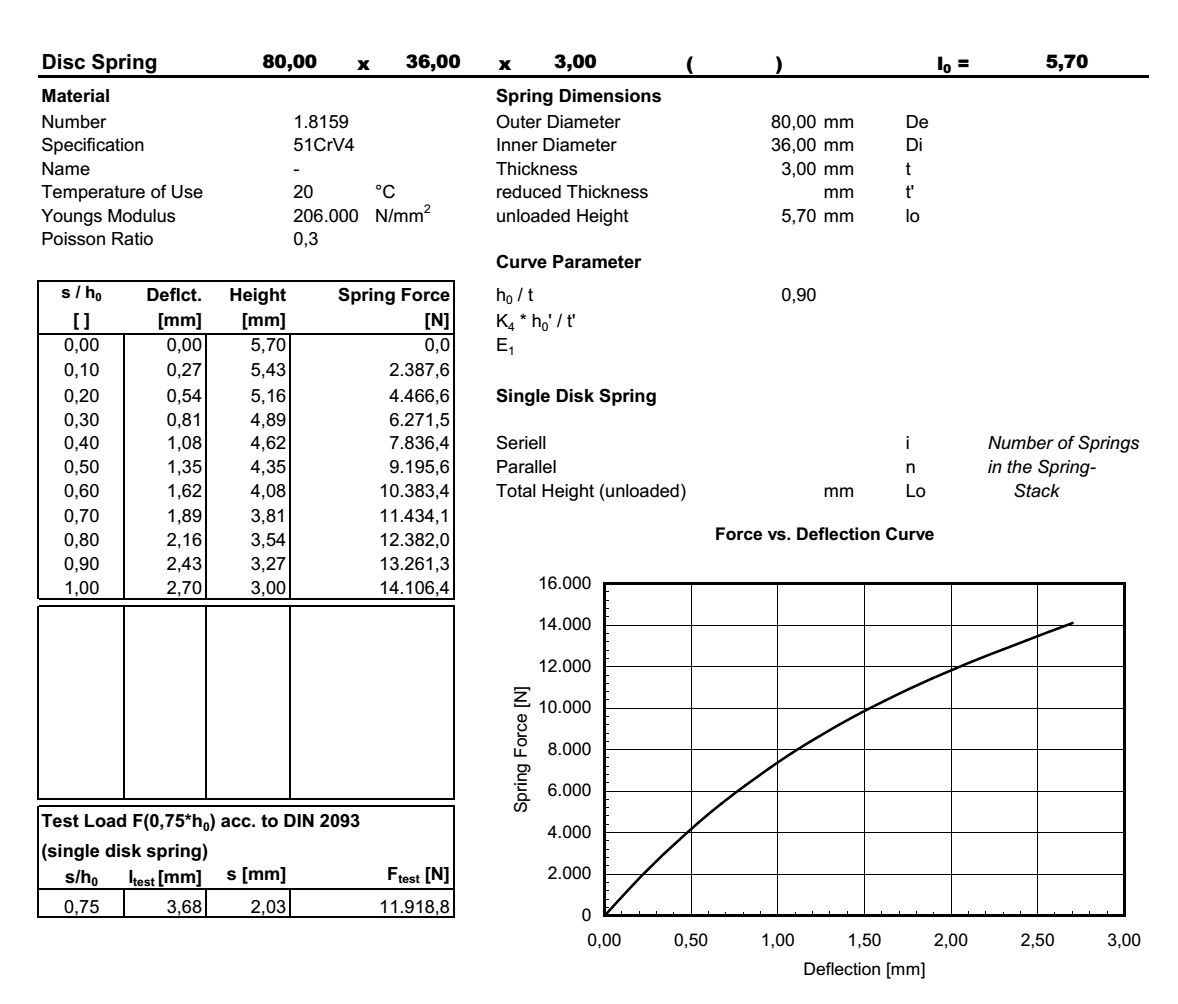

3,00 €Disc spring 80,0x36,0x3,00x5,70
Disc spring DIN 2093 Material 51CrV4
In Stock (19)3,00 €From 100 units 2,70 € From 500 units 2,46 € From 1000 units 2,25 € -
14,51 €Disc spring 80x36x3x5,7 stainless steel...
Disc spring DIN 2093 stainless steel 17-7PH
14,51 €From 100 units 12,33 € From 500 units 11,25 € From 1000 units 10,16 € -

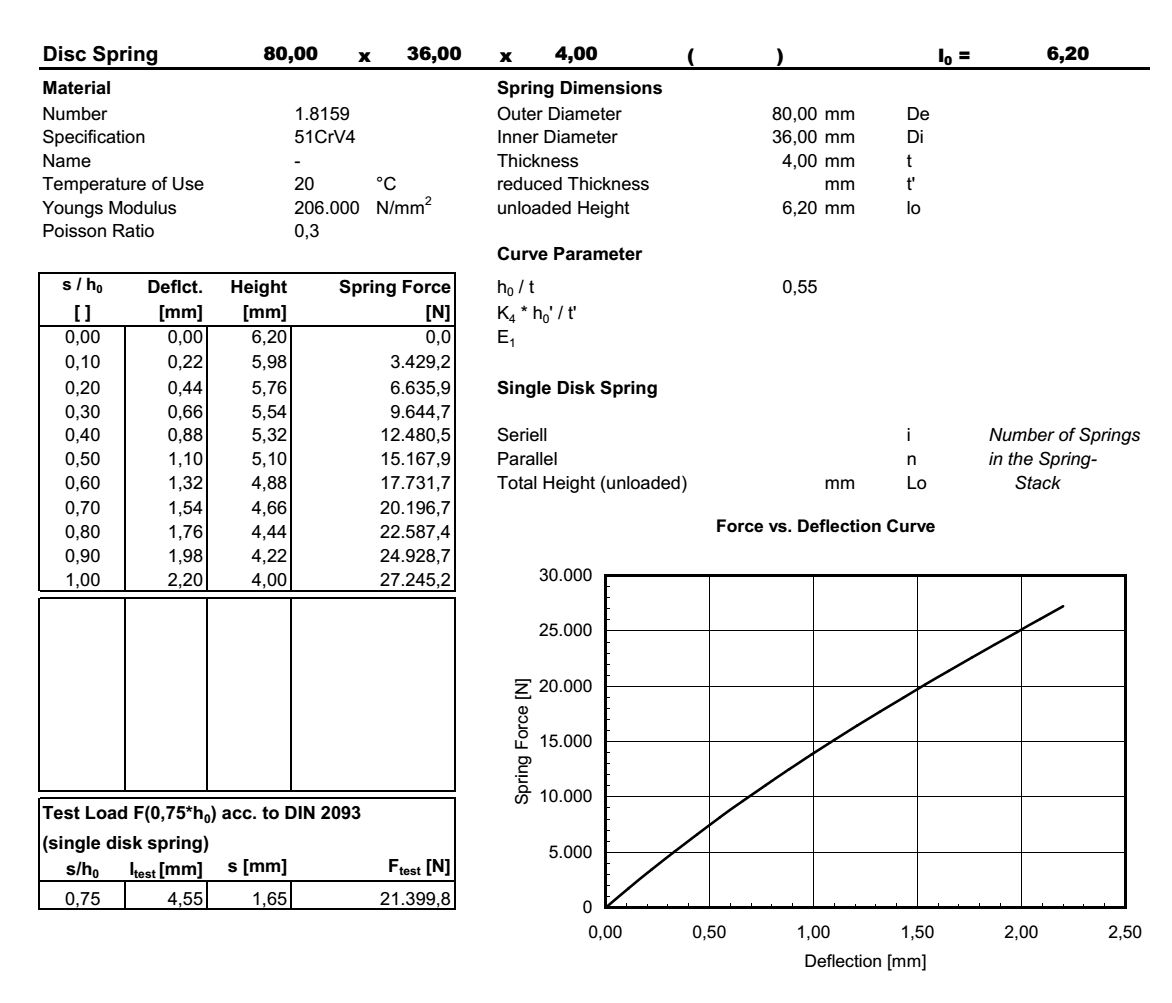

4,36 €Disc spring 80,0x36,0x4,00x6,20
Disc spring DIN 2093 Material 51CrV4
In Stock (117)4,36 €From 100 units 3,92 € From 500 units 3,58 € From 1000 units 3,27 € -

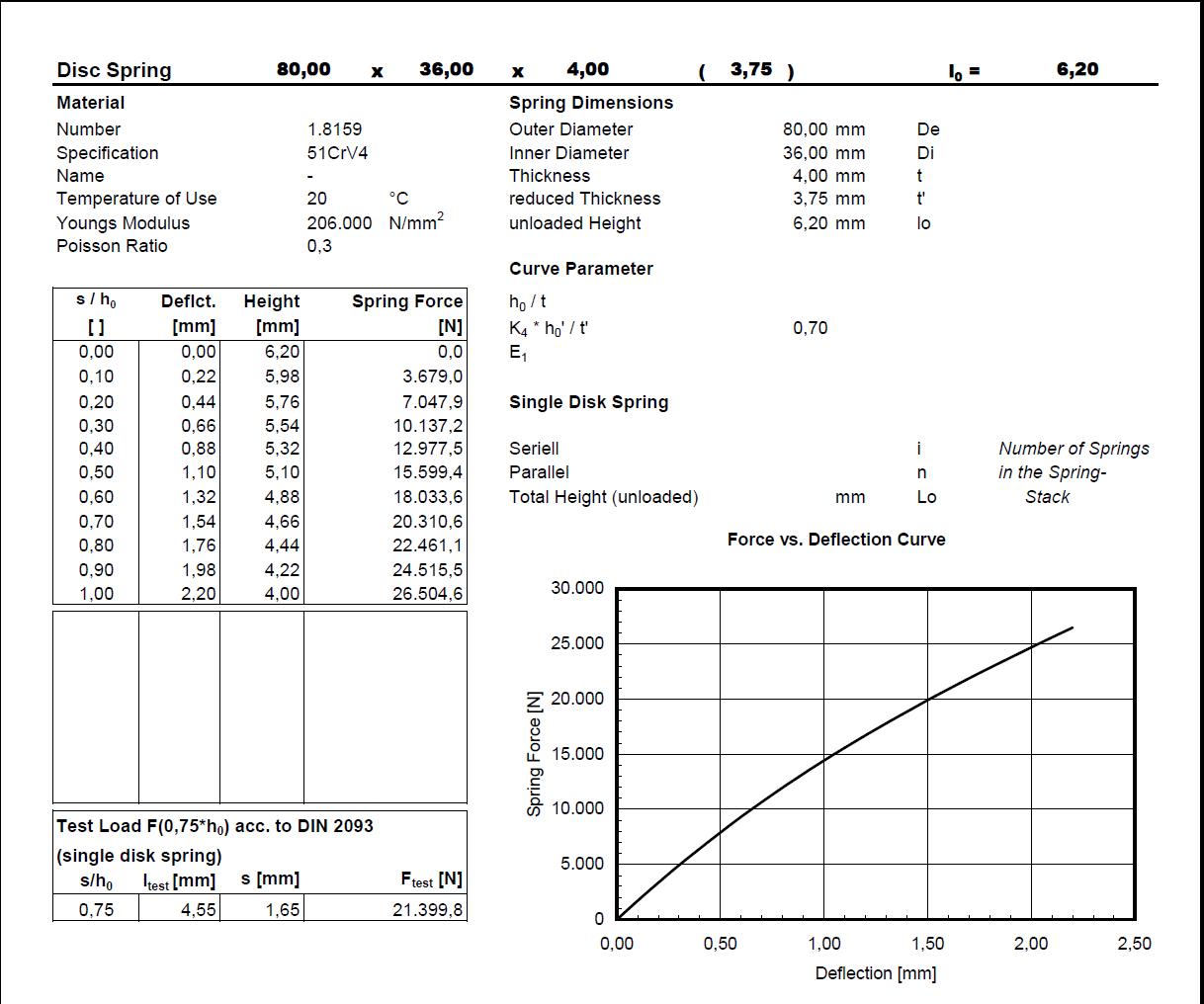

4,36 €Disc spring 80,0x36,0x4,00x6,20x3,75
Disc spring DIN 2093 Material 51CrV4
4,36 €From 100 units 3,92 € From 500 units 3,58 € From 1000 units 3,27 € -
11,57 €Disc spring 80,0x41,0x2,25x5,20 stainless...
Disc spring C80 DIN 2093 stainless steel 17-7PH
11,57 €From 100 units 9,83 € From 500 units 8,97 € From 1000 units 8,10 € -

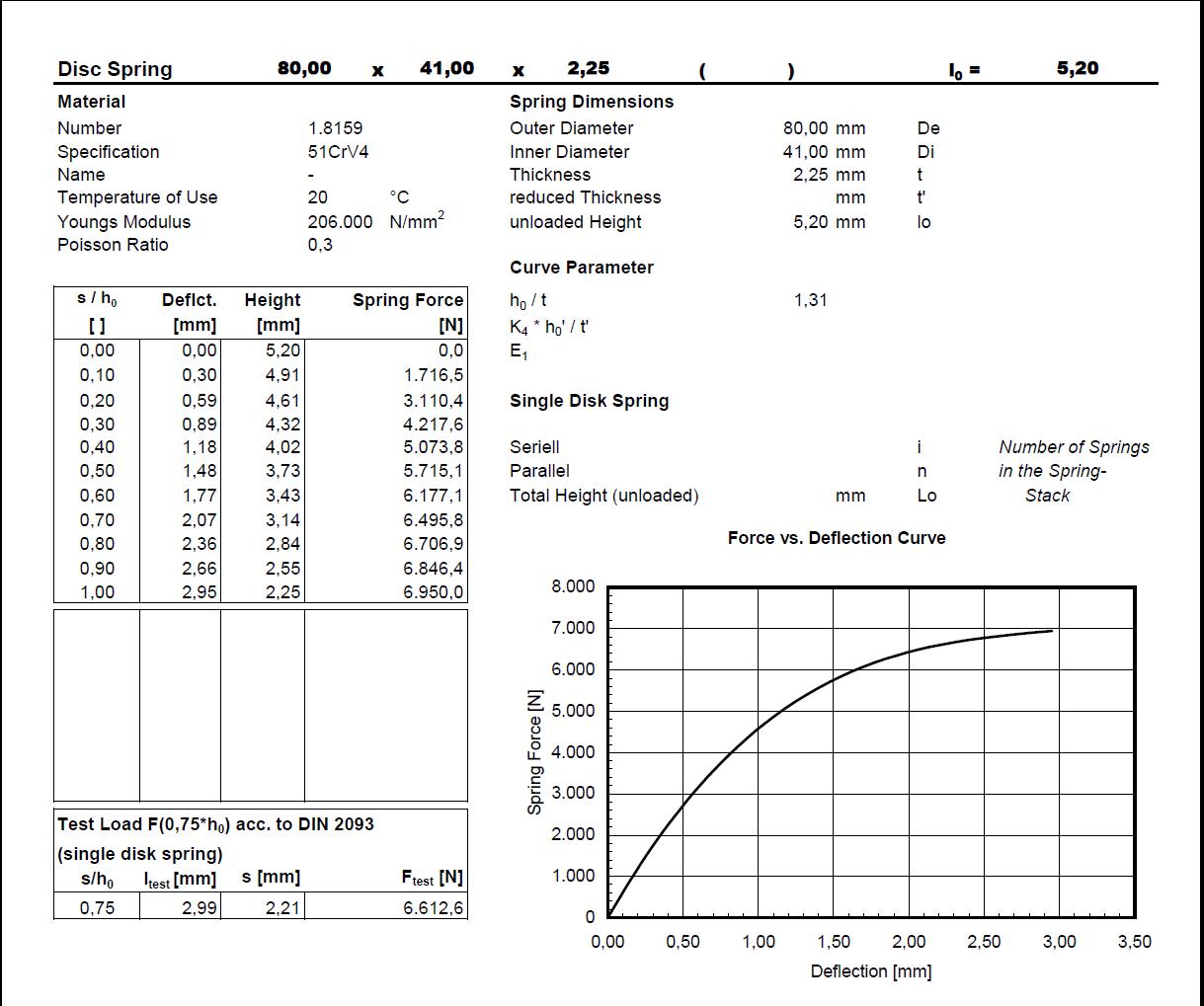

2,59 €Disc spring 80,0x41,0x2,25x5,20
Disc spring C80 DIN 2093 Material 51CrV4
In Stock (23)2,59 €From 100 units 2,33 € From 500 units 2,12 € From 1000 units 1,94 € -
14,90 €Disc spring 80,0x41,0x3,00x5,30 stainless...
Disc spring B80 DIN 2093 stainless steel 17-7PH
14,90 €From 100 units 12,67 € From 500 units 11,55 € From 1000 units 10,43 € -

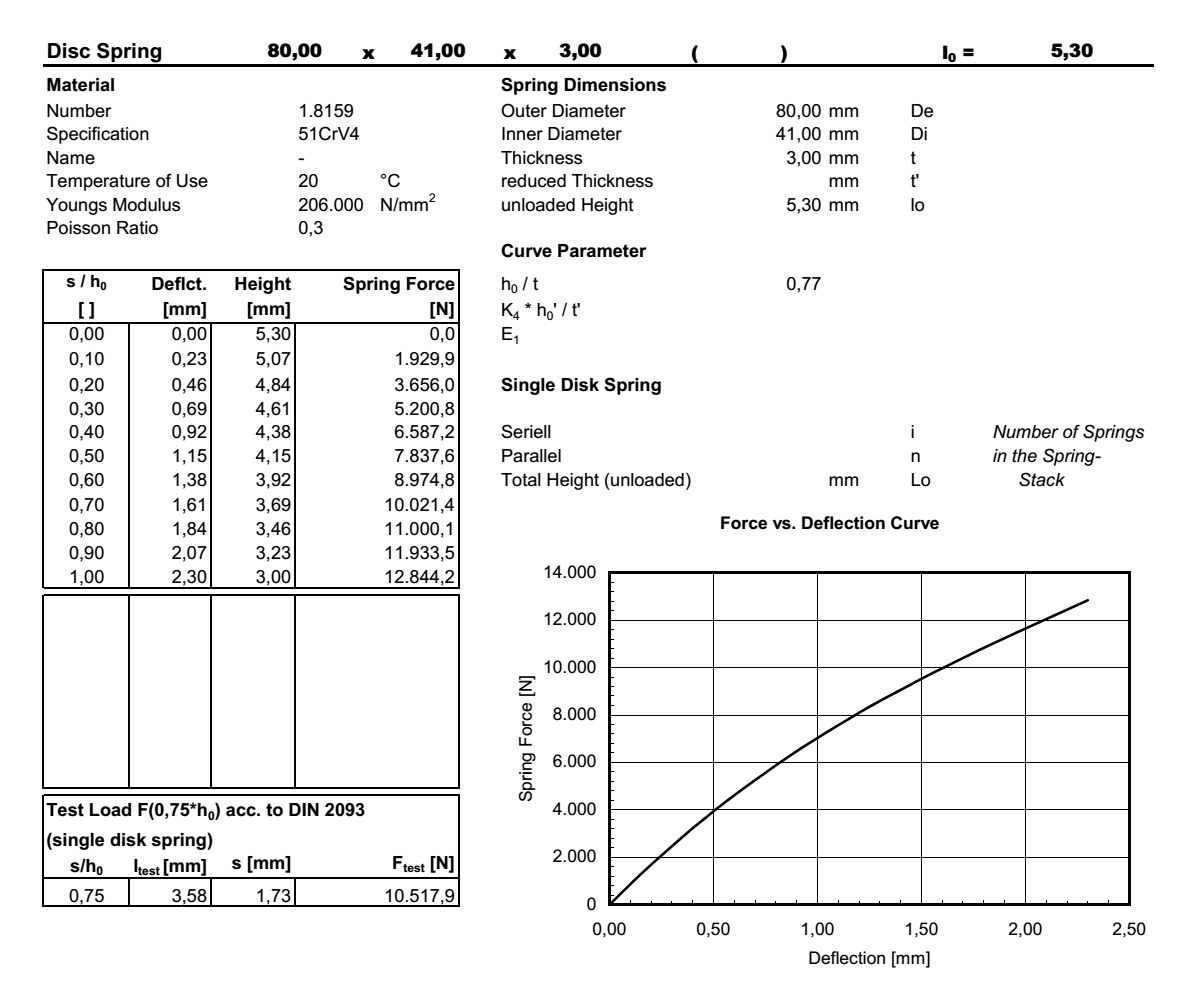

3,00 €Disc spring 80,0x41,0x3,00x5,30
Disc spring B80 DIN 2093 Material 51CrV4
In Stock (795)3,00 €From 100 units 2,70 € From 500 units 2,46 € From 1000 units 2,25 € -
19,07 €Disc spring 80,0x41,0x4,00x6,20 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
In Stock (96)19,07 €From 100 units 16,21 € From 500 units 14,78 € From 1000 units 13,35 € -
17,80 €Disc spring 80,0x41,0x4,00x6,20x3,75...
Disc spring DIN 2093 stainless steel 17-7PH
17,80 €From 100 units 15,13 € From 500 units 13,80 € From 1000 units 12,46 €
