Disc springs DIN 2093
Elastic disc springs DIN 2093 are pieces with a great accuracy. They are designed to work in a dynamic way supporting a high number of cycles.
These conical springs provide an elastic axial strength proportional to deformation they suffer. Depending on your needs, it's possible to stack these springs in serial or in parallel to achieve the spring required. To know more about these springs consult: Disc Springs DIN 2093
-

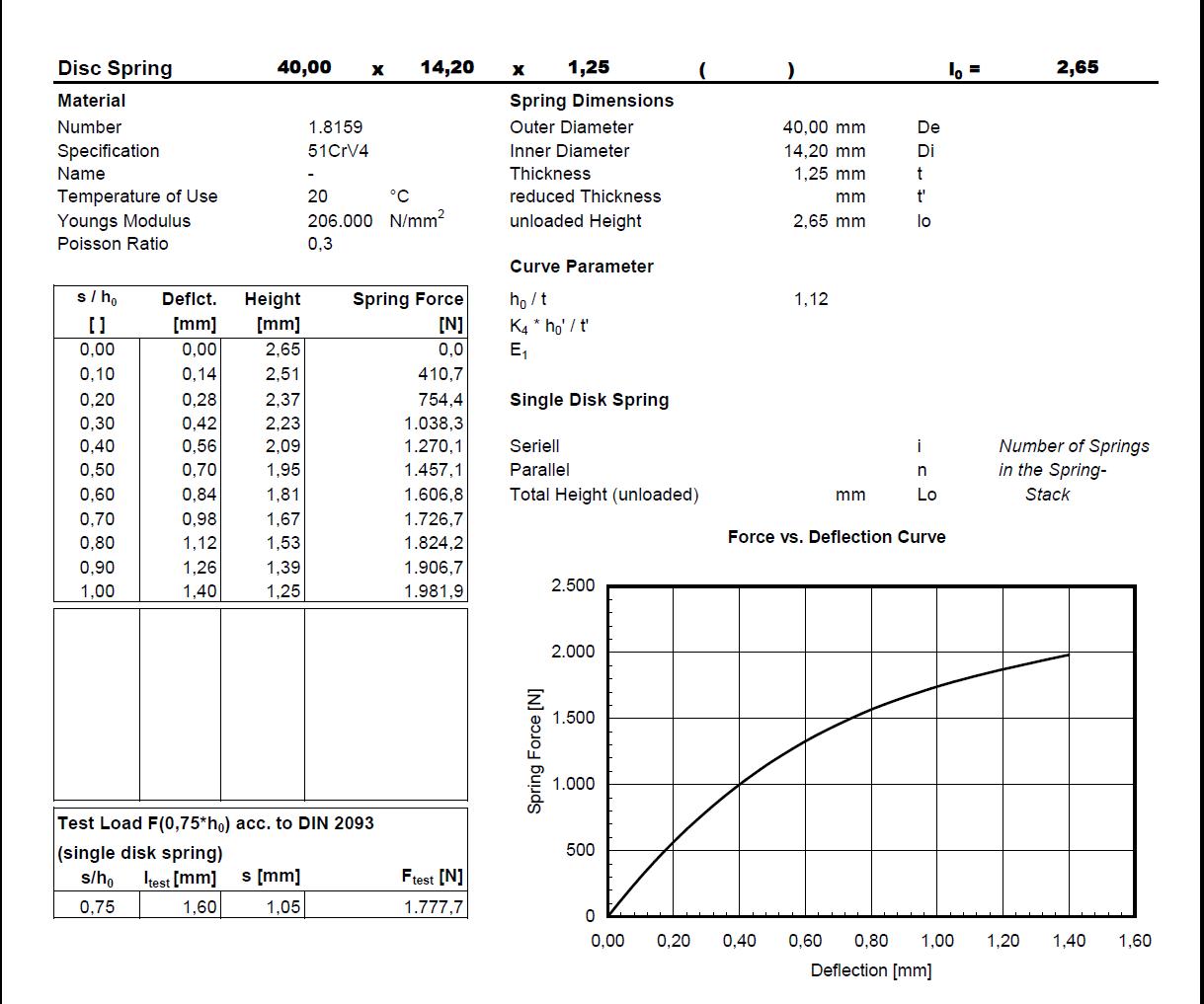

0,55 €Disc spring 40,0x14,2x1,25x2,65
Disc spring DIN 2093 Material 51CrV4
In Stock (700)0,55 €From 500 units 0,50 € From 1000 units 0,45 € From 5000 units 0,41 € -
0,59 €Disc spring 40,0x14,2x1,50x2,75
Disc spring DIN 2093 Material 51CrV4
In Stock (1576)0,59 €From 500 units 0,53 € From 1000 units 0,48 € From 5000 units 0,44 € -
0,62 €Disc spring 40,0x14,2x2,00x3,05
Disc spring DIN 2093 Material 51CrV4
0,62 €From 500 units 0,56 € From 1000 units 0,51 € From 5000 units 0,47 € -
3,11 €Disc spring 40,0x14,3x1,25x2,65 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
3,11 €From 500 units 2,55 € From 1000 units 2,18 € From 5000 units 1,65 € -
3,82 €Disc spring 40,0x14,3x1,50x2,75 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
3,82 €From 500 units 3,13 € From 1000 units 2,67 € From 5000 units 2,02 € -
4,49 €Disc spring 40,0x14,3x2,00x3,15 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
In Stock (395)4,49 €From 500 units 3,68 € From 1000 units 3,14 € From 5000 units 2,38 € -

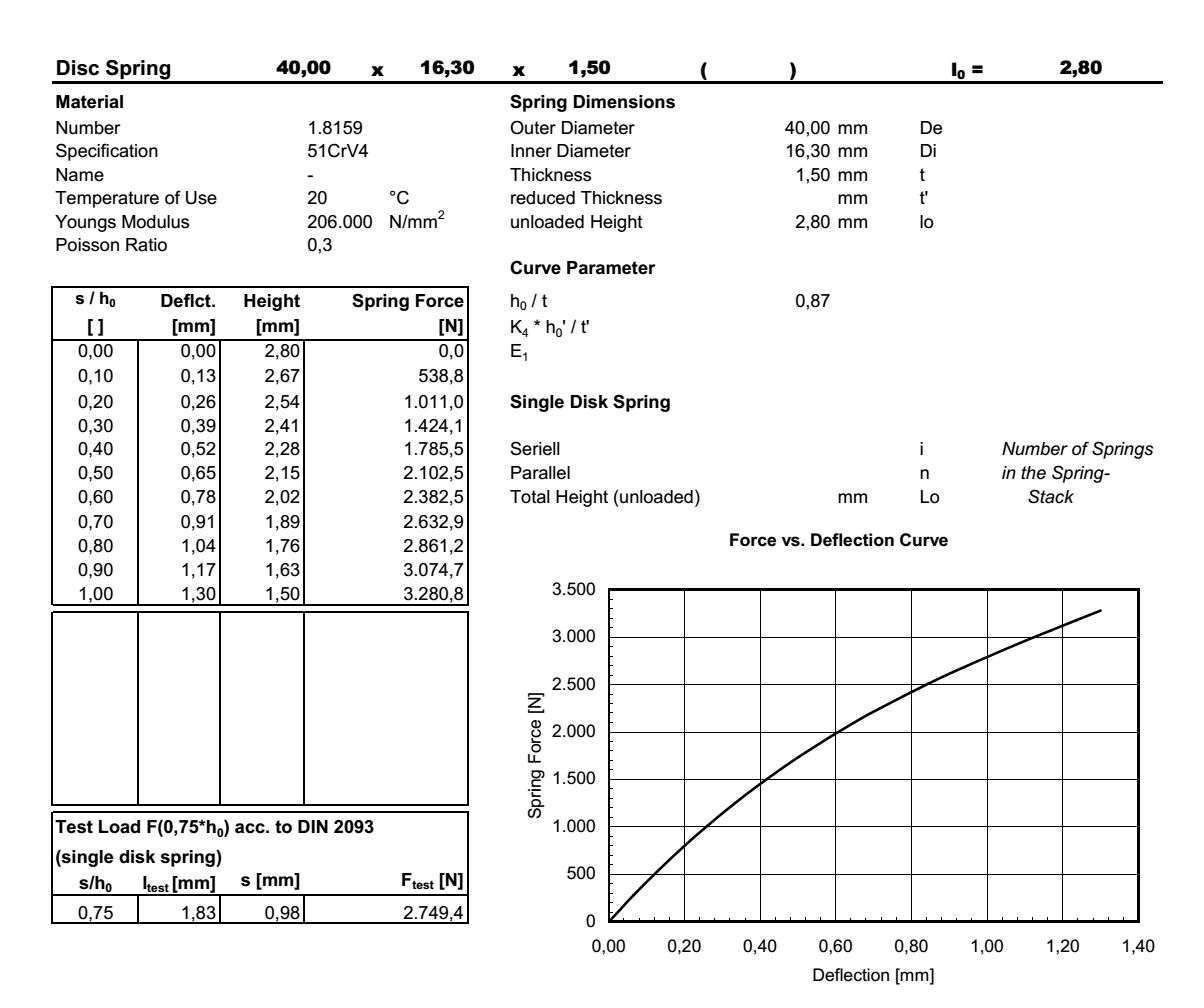

0,59 €Disc spring 40,0x16,3x1,50x2,80
Disc spring DIN 2093 Material 51CrV4
In Stock (960)0,59 €From 500 units 0,53 € From 1000 units 0,48 € From 5000 units 0,44 € -
3,82 €Disc spring 40,0x16,3x1,50x2,80 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
3,82 €From 500 units 3,13 € From 1000 units 2,67 € From 5000 units 2,02 € -
0,62 €Disc spring 40,0x16,3x2,00x3,10
Disc spring DIN 2093 Material 51CrV4
In Stock (4516)0,62 €From 500 units 0,56 € From 1000 units 0,51 € From 5000 units 0,47 € -
4,49 €Disc spring 40,0x16,3x2,00x3,10 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
In Stock (55)4,49 €From 500 units 3,68 € From 1000 units 3,14 € From 5000 units 2,38 €
