Disc spring stainless 17-7PH
Belleville springs DIN 2093 made of stainless steel 1.4568 ( 17-7PH ). Designed to dynamic or static works as well. These springs made with this material has a good resistance to corrosion, so are able to work at inside or outdoor aplications.
It is necessary to consider some force differences respect standard material, because of the elasticity module of this material. The chemical name of this stainless steel material is X7CrNiAl17-7. This material is not recommended for applications in environments with hydrochloric or hydrofluoric acids.
The thermal range for this material is -200ºC a 300ºC.
-
0,63 €Disc spring 12,0x4,2x0,50x0,85 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,63 €From 1000 units 0,52 € From 5000 units 0,44 € From 10000 units 0,33 € -
0,69 €Disc spring 12,0x4,2x0,60x1,00 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,69 €From 1000 units 0,57 € From 5000 units 0,48 € From 10000 units 0,37 € -

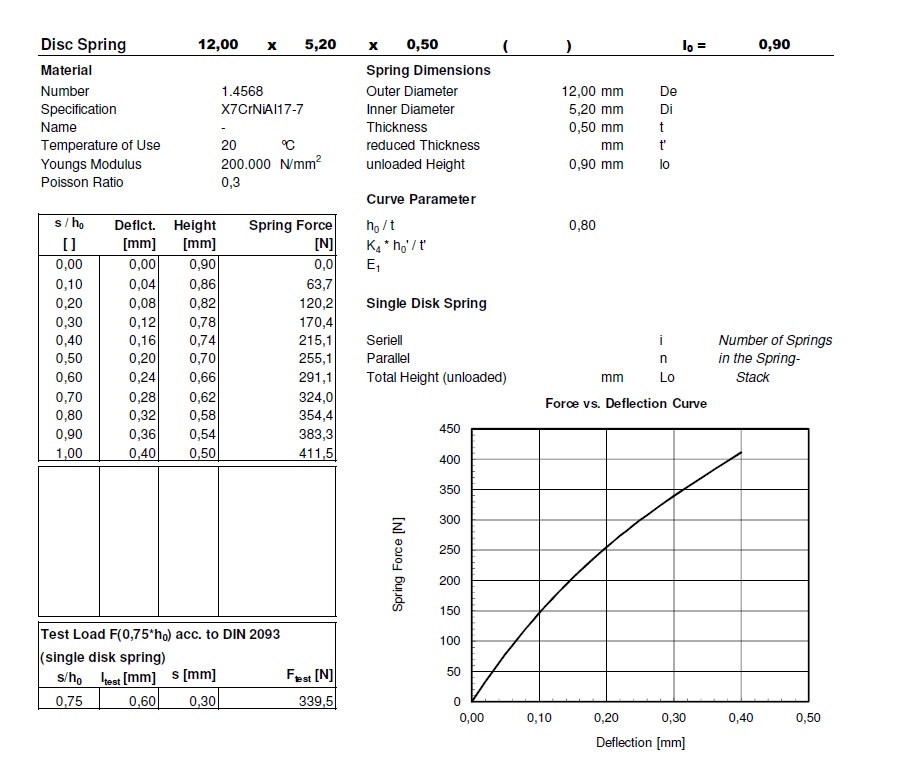

0,63 €Disc spring 12,0x5,2x0,50x0,90 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,63 €From 1000 units 0,52 € From 5000 units 0,44 € From 10000 units 0,33 € -
0,69 €Disc spring 12,0x5,2x0,60x0,95 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,69 €From 1000 units 0,57 € From 5000 units 0,48 € From 10000 units 0,37 € -
0,63 €Disc spring 12,0x6,2x0,50x0,85 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,63 €From 1000 units 0,52 € From 5000 units 0,44 € From 10000 units 0,33 € -
0,69 €Disc spring 12,0x6,2x0,60x0,95 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,69 €From 1000 units 0,57 € From 5000 units 0,48 € From 10000 units 0,37 € -
0,64 €Disc sping 12,5x5,2x0,50x0,85 stainless...
Disc spring DIN 2093 stainless steel 17-7PH
0,64 €From 1000 units 0,52 € From 5000 units 0,45 € From 10000 units 0,34 € -
0,64 €Disc spring 12,5x6,2x0,50x0,85 stainless...
Disc spring B12.5 DIN 2093 stainless steel 17-7PH
0,64 €From 1000 units 0,52 € From 5000 units 0,45 € From 10000 units 0,34 € -
0,79 €Disc spring 12,5x6,2x0,70x1,00 stainless...
Disc spring A12.5 DIN 2093 stainless steel 17-7PH
0,79 €From 1000 units 0,65 € From 5000 units 0,55 € From 10000 units 0,42 € -
0,71 €Disc spring 14,0x7,2x0,50x0,90 stainless...
Disc spring B14 DIN 2093 stainless steel 17-7PH
0,71 €From 1000 units 0,58 € From 5000 units 0,50 € From 10000 units 0,38 €
